Mission Campus Organ

The current organ at Trinity Lutheran Church was completed in 2010 and was an enlargement of a two-manual, twenty-one-rank 1983 instrument by Quimby Pipe Organ, Inc. The original instrument was one of Michael Quimby’s first and we were honored to have him rebuild the organ after twenty-seven years of additional building experience. It consists of three manuals and thirty-two ranks and features special sounds like chimes and a zimbelstern. Our versatile organ leads us in vibrant congregational singing and provides beauty during many concerts and recitals throughout the year.

Tonal Specifications of the Organ at the Mission Campus

GREAT ORGAN
Unenclosed

16’ Gemshorn, 61 notes 1-12 from Pedal Gedeckt
8’ Principal, 61 pipes existing
8’ Gedeckt, 61 pipes existing
8’ Gemshorn, 61 notes duplexed from Choir-Positiv
4’ Octave, 61 pipes existing
4’ Blockflute, 61 notes, 13-61 from Blockflute, 1-12 from Gedeckt
2 2/3’ Nazard, 49 pipes existing
2’ Super Octave, 61 notes from Choir-Positiv
2’ Blockflute, 61 pipes existing
1 3/5’ Tierce, 37 pipes existing top octave repeats
1 1/3’ Mixture III-IV, 232 pipes existing
16’ Contra Hautbois TC, 49 notes from Swell
8’ Trumpet, 61 pipes new
Chimes

SWELL ORGAN

8’ Rohrflute, 85 pipes existing
8’ Viola, 61 pipes existing
8’ Viole Celeste TC, 49 pipes existing
4’ Spitz Principal, 61 pipes existing
4’ Rohrflute, 61 notes existing
2’ Rohrflute, 61 notes existing
2’ Mixture III, 183 pipes new
8’ Trumpet, 61 pipes existing
8’ Hautbois, 61 pipes existing
Tremolo
16’ Swell to Swell
Swell Unison Off
4’ Swell to Swell

CHOIR-POSITIV ORGAN

Unenclosed – Enclosed
8’ Spitz Principal, 61 pipes new
8’ Holz Gedeckt, 61 pipes new
8’ Gemshorn, 61 pipes existing enclosed in Swell
8’ Gemshorn Celeste TC, 49 pipes new enclosed in Swell
4’ Octave, 61 pipes new
4’ Koppel Flute, 61 pipes new
2’ Super Octave, 61 pipes new
1 1/3’ Quint, 49 pipes new – top octave repeats
8’ Trumpet, 61 notes from Great
8’ Hautbois, 61 notes from Swell
8’ Cromorne, 61 pipes new
Tremolo
16’ Choir-Positiv to Choir-Positiv
Choir-Positiv Unison Off
4’ Choir-Positiv to Choir-Positiv

 PEDAL ORGAN

32’ Untersatz, 32 notes extension 16’ Subbass 1-12 digital
16’ Principal, 32 notes extension 8’ Principal 1-12 resultant
16’ Subbass, 44 pipes
16’ Gedeckt, 32 notes from Swell
8’ Octave, 44 pipes existing
8’ Bourdon, 32 notes extension 16’ Subbass
8’ Gemshorn, 32 notes from Swell
4’ Super Octave, 32 notes extension 8’ Principal
4’ Gedeckt, 32 notes from Great
16’ Posaune, 56 pipes new
8’ Bombarde, 32 notes extension
8’ Hautbois, 32 notes from Swell
4’ Clarion, 32 notes extension
4’ Hautbois, 32 notes from Swell

TOTAL RANK ANALYSIS

32 Ranks
1,853 Total Pipes

OTHER COUPLERS

Swell to Great 16-8-4’
Swell to Choir-Positiv 16-8-4’
Choir-Positiv to Great 16-8-4’
Great to Choir-Positiv 8’
Great to Pedal 8’
Swell to Pedal 8-4’
Choir to Pedal 8-4’

 COMBINATION ACTION

Peterson Electro-Musical Products ICS-4000 – 99 levels of memory
Generals 1-15 by thumb piston and 16-24 by toe stud for control of the entire organ
Pistons 1 through 5 and cancel for control of Great organ only
Pistons 1 through 5 and cancel for control of Swell organ only
Pistons 1 through 5 and cancel for control of Choir-Positiv organ only
General Cancel Piston
Set Piston
“Previous” toe stud and thumb piston
“Next” toe stud and thumb piston

ACCESSORIES

Crescendo Pedal
Swell Pedal 16 independent stages
Sforzando Reversible toe and thumb piston
Great to Pedal Reversible toe and thumb piston
Swell to Pedal Reversible toe and thumb piston
Choir-Positiv to Pedal Reversible toe stud and thumb piston
Cymbelstern Reversible

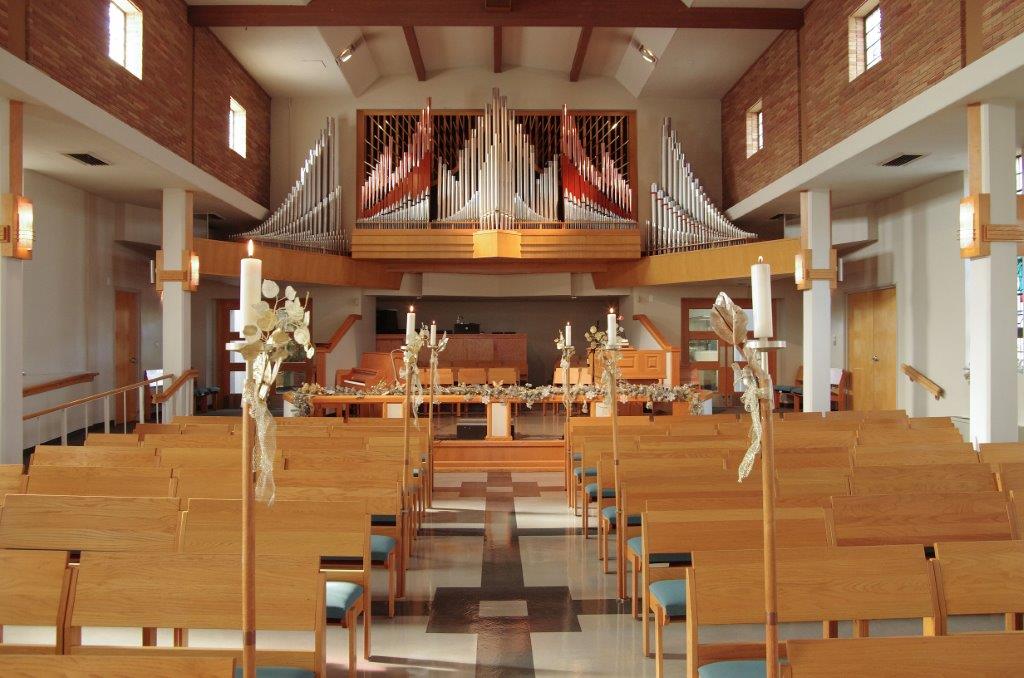

Quimby Pipe Organ at the Mission Campus
